Automatic Hardness Tester
- Automatic hardness tester.
- Hardness measurement able to be done by a button.
- Touch by a built-in motor.
- The control part pursues the clarity and easiness of use by adopting a touch panel.

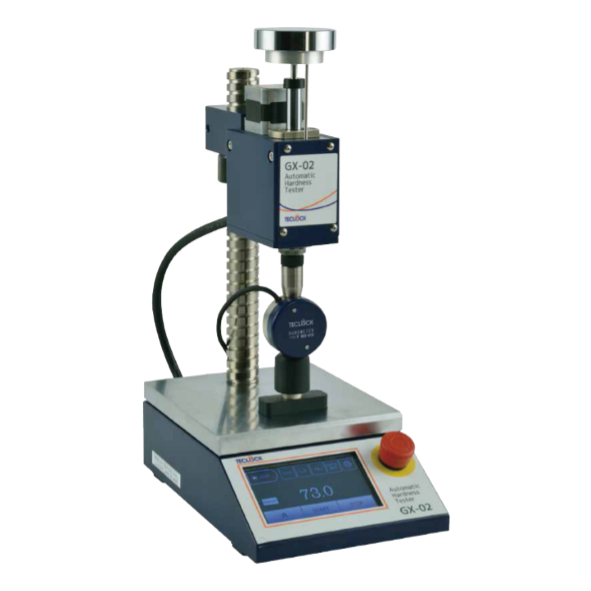

Teclock Automatic Hardness Tester GX Series
Automatic Hardness Tester for Rubber Hardness Testing GX series – Allowed two types- maximum value and the timer value by MSP Metrology (M) Sdn Bhd from Teclock Japan
Features
.png "GX1")
Measuring modes: 3 types
Normal mode (the maximum value is acquirable)
Test time mode
The median value and mean value are calculated.
PC mode
Operable by PC by using the dedicated software.
Tolerance judging feature
The system includes tolerance judging function for efficient hardness testing.
.png)
Measuring Modes & Control
- Measuring modes: 3 types
- Normal mode (the maximum value is acquirable)
- Test time mode (the median value and mean value are calculated)
- PC mode (operable by PC by using the dedicated software)
- Tolerance judging feature

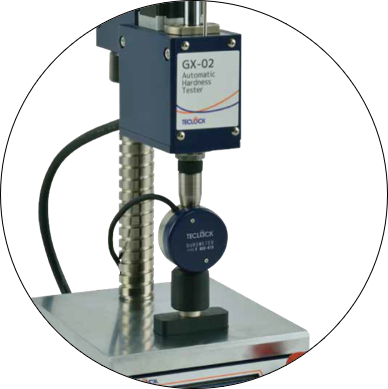

System Display
The control part pursues the clarity and easiness of use by adopting a touch panel.
.png "GX2")
Full Specifications
| Standards | ISO 7619 / JIS K 6253 compliance |
| Minimum Indication | 0.1 |
| System Features | Peak-holding function, Timer-holding function (Timer value 0.5, 1 to 99sec), Tolerance judging function, Mean value outputting function (n=1 to 30), Data output (PC printer), Outer functions control output |
| Outside Interface | RS-232C |
| Power | AC100～240V(ACAdapter) |
| Dimension | 170(W) × 160(L) × 470(H)mm |
| Weight | 11kg (Including weight 1kg) |
| Sensor Unit |
Model: GSS-619 (Type A), GSS-620 (Type D), GSS-621 (Type E) Pressing-surface diameter: φ18mm (ESS-621, type E is 127mm) Code length: 2m Dimensions: 50(W) × 35(L) × 124(H)mm Weight: 320g |
System Configurations
| Model | Body | 1kg for weight (Accessories) | Sensor Unit | Measuring Object |
| GX-02A | Display unit (with stand) | ZY-090 | GSS-619 | Normal rubber & soft plastic |
| GX-02D | ZY-090+ZY-128 (5kg for weight) | GSS-620 | Hard rubber & plastic | |
| GX-02E | ZY-090 | GSS-621 | Soft rubber | |
| GX-02FO | GSS-644 | Urethane foam |
Contact us today to inquire about the Teclock Automatic Hardness Tester GX Series and enhance your rubber hardness testing capabilities.
